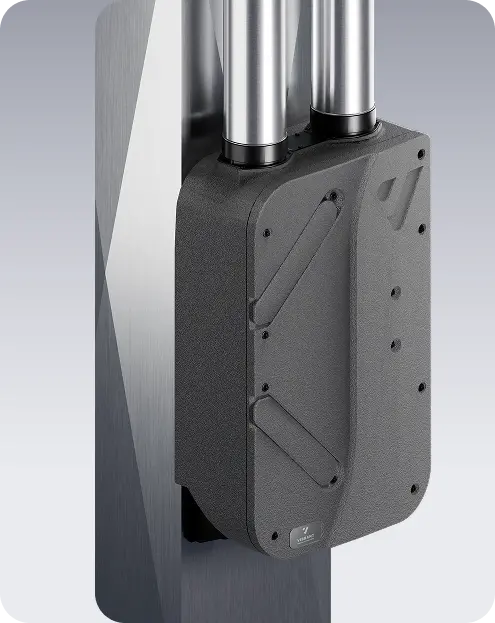

VBT-ERV-400
Vibrant Air Smart ERV delivers energy recovery and smart, auto-balancing ventilation for single- and multi-family homes.
Ventilation type
Energy (Balanced, Fresh-Air Ventilation with Heat & Moisture Recovery)
Airflow range
40-300 CFM (EC)
Sensible recovery (SRE)
Up to 76%
Duct size
6"
Cabinet
Insulated EPP
Filters
MERV 13 std. (MERV 16 opt.)
Power
120V, 60Hz
Dimensions / Weight
37.2 x 22.6 x 12 • 34.5 lbs
- Allow 8" service clearance each side
Ports
Two outdoor (in/out), two plenum
Controls
- Fully onboard control system—no wired wall controls required.

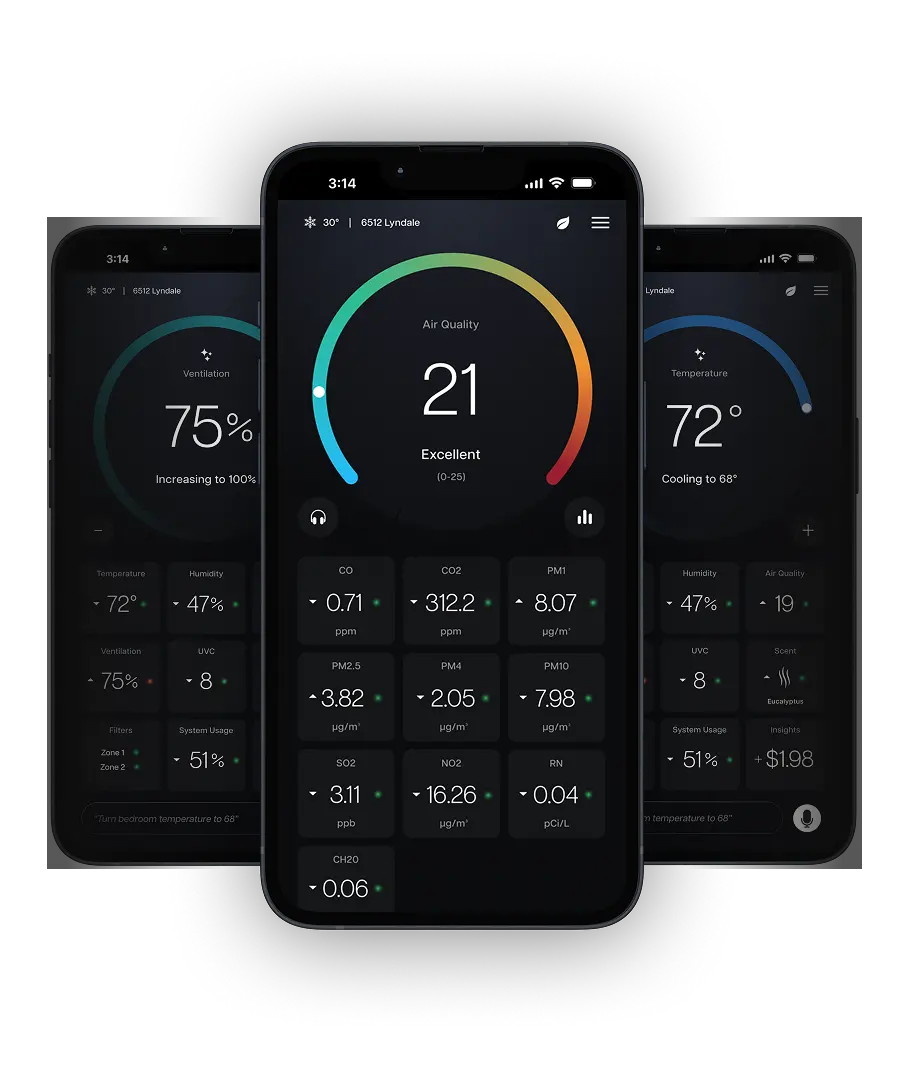

- Commissioned through the Vibrant app with guided setup.
- Connects via Thread or Wi-Fi gateway for monitoring and updates.
- Auto-balances using onboard sensors and app calibration.
- App control for setpoints, modes, and OTA firmware updates.
Maintenance
- Pre-filter: washable MERV 6 or 1" MERV 13; check quarterly
- Core: inspect annually; frost-control mode protects in low temps
VBT-ERV-400
Vibrant Air Smart ERV delivers energy recovery and smart, auto-balancing ventilation for single and multi-family homes.
Ventilation type
Energy (Balanced, Fresh-Air Ventilation with Heat & Moisture Recovery)
Airflow range
40-300 CFM (EC)
Sensible recovery (SRE)
Up to 76%
Duct size
6"
Cabinet
Insulated EPP
Filters
MERV 13 std. (MERV 16 opt.)
Power
120V, 60Hz
Dimensions / Weight
37.2 x 22.6 x 12 • 34.5 lbs
- Allow 8" service clearance each side
Ports
Two outdoor (in/out), two plenum
Controls
- Fully onboard control system—no wired wall controls required.
- Commissioned through the Vibrant app with guided setup.
- Connects via Thread or Wi-Fi gateway for monitoring and updates.
- Auto-balances using onboard sensors and app calibration.
- App control for setpoints, modes, and OTA firmware updates.
Maintenance
- Pre-filter: washable MERV 6 or 1" MERV 13; check quarterly
- Core: inspect annually; frost-control mode protects in low temps

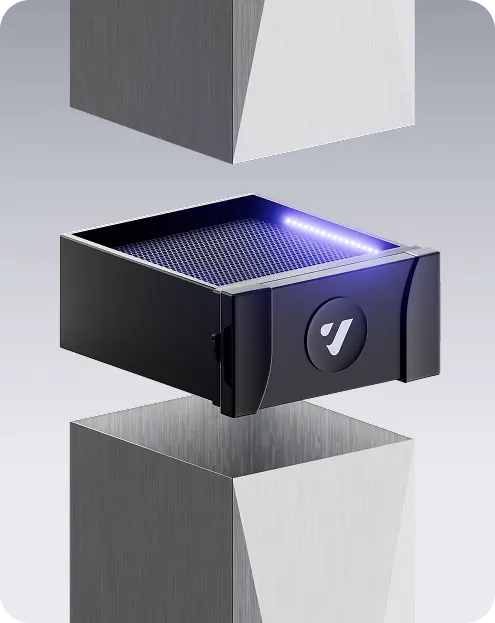

VBT-MC-425
Vibrant Air Smart Filter Box delivers high-efficiency, low-resistance filtration with germicidal UV-C purification and live filter-health diagnostics that drive recurring service revenue.
Filter sizes
16 x 20 16 x 25, 20 x 20, 20 x 25 (4" depth)
Filter options
4" MERV-13/16 nanofiber main filter + 1" MERV-8 powder-bonded carbon pre-filter
Initial ΔP @ 500 FPM
M13 .20 / M16 0.25
On board remote diagnostic sensors
ΔP, Velocity, VOC, Supply Temp
Max system CFM
Up to 2,000 CFM
UVC module
Power During “On Cycle”: 24 VDC, 4.2A, 100W
Install
Inline return installation; arrow decal shows flow direction. Service door faces aisle; 18” clearance recommended.
Airflow and pressure
Built-in wireless ΔP and Velocity sensors continuously track filter pressure drop. Alerts only when the filter is truly full.
Service
- Carbon pre-filters are replaced every 1–3 months, and MERV-16 filters every 6–12 months depending on use.
- The UV-C module is replaced every two years, and the IAQ sensor is cleaned annually.
- The app alerts both the homeowner and the pro when service is needed.
VBT-MC-425
Vibrant Air Smart Filter Box delivers high-efficiency, low-resistance filtration with germicidal UV-C purification and live filter-health diagnostics that drive recurring service revenue.
Filter sizes
16 x 20 16 x 25, 20 x 20, 20 x 25 (4" depth)
Filter options
4" MERV-13/16 nanofiber main filter + 1" MERV-8 powder-bonded carbon pre-filter
Initial ΔP @ 500 FPM
M13 .20 / M16 0.25
On board remote diagnostic sensors
ΔP, Velocity, VOC, Supply Temp
Max system CFM
Up to 2,000 CFM
UVC module
Power During “On Cycle”: 24 VDC, 4.2A, 100W
Install
Inline return installation; arrow decal shows flow direction. Service door faces aisle; 18” clearance recommended.
Airflow and pressure
Built-in wireless ΔP and Velocity sensors continuously track filter pressure drop. Alerts only when the filter is truly full.
Service
- Carbon pre-filters are replaced every 1–3 months, and MERV-16 filters every 6–12 months depending on use.
- The UV-C module is replaced every two years, and the IAQ sensor is cleaned annually.
- The app alerts both the homeowner and the pro when service is needed.

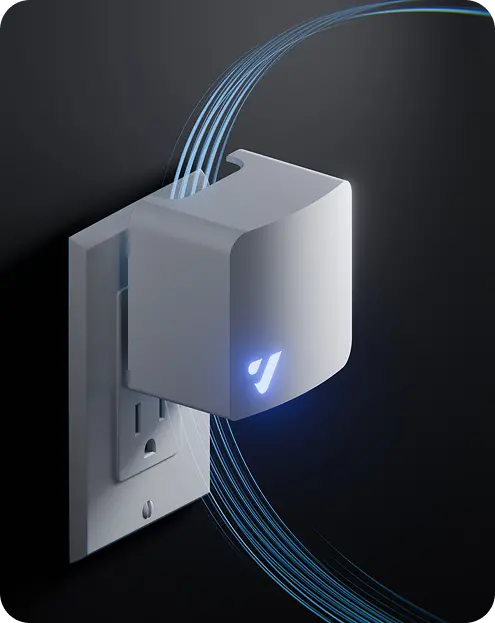

VBT-SNS-100
Sense — IAQ monitor is full-spectrum IAQ sensing that informs control: CO₂, VOCs, PM₂.₅/PM₁₀, RH, Temp (and optional CO/NO₂/O₃/Radon).
Sampling interval
5 minutes (configurable)
Connectivity
WiFi 2.4GHz, BLE, and Thread
Power
5V USBC
Mounting
Wall or tabletop
Operating range
0-100% RH, -10 to 50°C
App commissioning
2-step mobile pairing and biannual sensor recalibration using a swappable sensor module.
Sensor ranges and accuracy
Measurement
Sensor Technology
Measuring Range
Accuracy
Carbon Dioxide
Nondispersive Infrared Sensor (NDIR)
0 - 5000 ppm
±40 ppm
Temperature
Digital Sensor
-40 - 125°C
±0.2°C
Humidity
Digital Sensor
0 - 100% RH
±1.8% RH
Total Volatile Organic Compounds
Medal Oxide (MOX) Technology
0 - 65000 ppb
±12%
Particulate Matter* (PM₂.₅, PM₁₀)
Light Scattering Laser Particle Sensor
0 - 1000 μg/m3
±10% (PM₂.₅)
±30% (PM₁₀)
±30% (PM₁₀)
Carbon Monoxide
Electrochemical Sensing Technology
0 - 50 ppm
±5%
Nitrogen Dioxide
Electrochemical Sensing Technology
0 - 5 ppm
±5%
Ozone
Electrochemical Sensing Technology
0 - 10 ppm
±5%
VBT-SNS-100
Sense — IAQ monitor is full-spectrum IAQ sensing that informs control: CO₂, VOCs, PM₂.₅/PM₁₀, RH, Temp (and optional CO/NO₂/O₃/Radon).
Sampling interval
5 minutes (configurable)
Connectivity
WiFi 2.4GHz, BLE, and Thread
Power
5V USBC
Mounting
Wall or tabletop
Operating range
0-100% RH, -10 to 50°C
App commissioning
2-step mobile pairing and biannual sensor recalibration using a swappable sensor module.
Sensor ranges and accuracy
Measurement
Sensor Technology
Measuring Range
Accuracy
Carbon Dioxide
Nondispersive Infrared Sensor (NDIR)
0 - 5000 ppm
±40 ppm
Temperature
Digital Sensor
-40 - 125°C
±0.2°C
Humidity
Digital Sensor
0 - 100% RH
±1.8% RH
Total Volatile Organic Compounds
Medal Oxide (MOX) Technology
0 - 65000 ppb
±12%
Particulate Matter* (PM₂.₅, PM₁₀)
Light Scattering Laser Particle Sensor
0 - 1000 μg/m3
±10% (PM₂.₅)
±30% (PM₁₀)
±30% (PM₁₀)
Carbon Monoxide
Electrochemical Sensing Technology
0 - 50 ppm
±5%
Nitrogen Dioxide
Electrochemical Sensing Technology
0 - 5 ppm
±5%
Ozone
Electrochemical Sensing Technology
0 - 10 ppm
±5%
How our system works
Our system works in a simple control loop: Sense → Diagnose → Act → Learn.
Vibrant operates as a closed feedback system that reacts to real-time conditions, not static schedules.
Sense
Monitors CO₂, VOCs, particulates, RH, Temp, Radon, and occupancy. Detects pathogens and poor air quality.
Diagnose
If air quality drops, ventilation increases. If pathogens are detected, UVC activates. Vibrant Air instantly responds to its true environment to keep air healthy.
Act
Over time, the system learns occupant behavior, schedules, and building response patterns—making comfort, ventilation, and purification smarter with each cycle.
Learn
Over time, the system learns occupant behavior, schedules, and building response patterns—making comfort, ventilation, and purification smarter with each cycle.
How our system works
Our system works in a simple control loop: Sense → Diagnose → Act → Learn.
Vibrant operates as a closed feedback system that reacts to real-time conditions, not static schedules.
Sense
Monitors CO₂, VOCs, particulates, RH, Temp, Radon, and occupancy. Detects pathogens and poor air quality.
Diagnose
If air quality drops, ventilation increases. If pathogens are detected, UVC activates. Vibrant Air instantly responds to its true environment to keep air healthy.
Act
Over time, the system learns occupant behavior, schedules, and building response patterns—making comfort, ventilation, and purification smarter with each cycle.
Learn
Over time, the system learns occupant behavior, schedules, and building response patterns—making comfort, ventilation, and purification smarter with each cycle.
Codes and Compliance
ASHRAE 62.2
Title 24 Balanced Ventilation
UL 1812 (pending)
FCC
HVI (pending)
UL 2998 (Zero Ozone for UVC Modules)
UL/CSA 60336-2-40 (pending)
Codes and Compliance
ASHRAE 62.2
Title 24 Balanced Ventilation
UL 1812 (pending)
FCC
HVI (pending)
UL 2998 (Zero Ozone for UVC Modules)
UL/CSA 60336-2-40 (pending)
Service and Commissioning
- Install the hardware and gateway.
- Pair devices in the Vibrant contractor app — as simple as connecting Bluetooth headphones.
- Send the homeowner their portal invite for IAQ and system performance visibility.
Service and Commissioning
- Install the hardware and gateway.
- Pair devices in the Vibrant contractor app — as simple as connecting Bluetooth headphones.
- Send the homeowner their portal invite for IAQ and system performance visibility.
